CKZ楔块式单向离合器
产品特性:
上传中
品牌:
迈动工业
材质:
45钢,调质
表面:
发黑,注PU
寿命:
2
包装:
迈动工业纸箱密封包装
起订量:
1
交期:
标准产品备有现货库存,批量生产2~3周交货
  • 技术参数Parameter
  • 技术支持Support
  • 使用说明Direction
  • 购买咨询Consultancy
  • 支付问题Pay
  • 发票与保修I & M
  • 其它问题Other

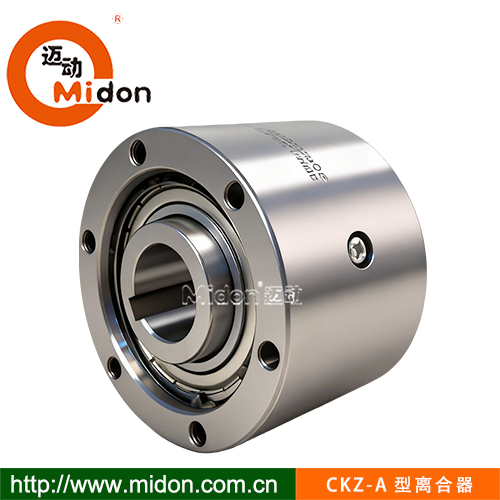

CKZ-A

特性:

        CKZ-A系列为楔块式单向离合器,内含两套深沟球轴承支撑及油封。依照不同需要,出厂时内含润滑油或润滑脂。

        内环与轴用键联结,外环为h7公差与体壁H7公差配合,并用螺栓联结。

        用在包装、运输、冶金、矿山等机械上。防止逆转或超越运转,适合中速运行。



超越极限转速外形尺寸〔mm〕重量
额定扭矩〔r/min〕外环尺寸内环尺寸(kg)
〔N·m〕内环外环D〔h7〕BFn-MHDCbn×tn


(H7)

CKZ-A208017512005108060684-M61520626×2.81.89
CKZ-A35100630100042510078866-M820358010×3.33.6
CKZ-A401151115900400115801006-M820408210×3.34.89
CKZ-A401201160900400120801056-M820408210×3.35.39
CKZ-A421251268900400125901056-M820429212×3.36.56
CKZ-A451401585750350140951206-M1025459714×3.88.78
CKZ-A501501900700300150951306-M1025509714×3.89.99
CKZ-A5516022906002501601051406-M10255510716×4.312.47
CKZ-A6517027206002001701051506-M10256510716×4.313.63
CKZ-A7018031005001501801101606-M1025701122×4.915.91
CKZ-A189040011004609054756-M61518566×2.82.46
CKZ-A259040011004609049756-M61525508×2.52.35
CKZ-A25100630100042510079886-M81625808×3.34.12
CKZ-A28100630100042510078866-M82028808×3.33.98
CKZ-A30100630100042510078866-M820308010×3.33.8
CKZ-A32100630100042510078866-M820328010×6.33.71
CKZ-A381151115900400115801006-M820388210×3.34.9
CKZ-A451251268900400125901108-M825459214×3.86.51
CKZ-A50135970800400135701156-M1020507214×3.86.61
CKZ-A513815807503501381011246-M8204510512×5.08.85
CKZ-A501602290600250160901406-M1020509014×3.812.86
CKZ-A5018031005001501801241586-M10255012814×3.816.9
CKZ-A5514518507003001451001306-M8205510214×3.89.42
CKZ-A5517027206002001701101468-M8155511216×4.314.2


CKZ-B

特性:

   CKZ-B系列为楔块式单向离合器,内含两套滚珠轴承支撑。依照不同需要,出厂时内含润滑油或润滑脂。 内环与轴用键联结,外环为h7公差与机壁H7公差配合,并用螺孔联结。

   常用在包装、运输、冶金、矿山等机械上。防止逆转或用于低速楔合、中低速超越的双动力系统


型号额定扭矩超越极限转速外形尺寸〔mm〕重量
〔N·m〕〔r/min〕外环尺寸内环尺寸(kg)

内环外环D〔h7〕D1〔H7〕BFn-MEHd〔H7〕Cbn×tne
CKZ-B 251104047003001108068956-M81520257010×3.34.53.98
CKZ-B3513082556025013090851006-M101525358710×3.34.57.01
CKZ-B451501464490200150110901306-M102025459214×3.84.59.69
CKZ-B501651830420150165120921456-M122025509714×3.8512.36
CKZ-B5018029904201501801251061606-M1220255010816×3.8516.51
CKZ-B6020034943501202001501151806-M1225256011720×4.9622.02
CKZ-B7024049203501202401701222106-M1425307012422×5.4634.65
CKZ-B7526057602801002602001302306-M1825357513822×5.4842.38
CKZ-B8030075002801003002301362656-M1825358013822×5.4857.17
CKZ-B251004007503501007580886-M18101625828×3.34.52.62
CKZ-B281054007003001058068956-M81516287010×3.34.52.75
CKZ-B3090350800380906249756-M6101530508×2.044.86
CKZ-B3290380800380906560808-M61016326010×3.744.32
CKZ-B301104047003001108068956-M81516307010×3.34.53.91
CKZ-B32125102156025012595901108-M81512329210×3.34.56.53
CKZ-B351158007003001157278956月11日15
357810×3.34.54.63
CKZ-B4012580060030012595761106-M81518408012×3.34.55.6
CKZ-B451902150380130190130861604月4日20
458614×3.8617.5
CKZ-B5515517354902001551251001408-M820205510216×4.3510.96
CKZ-B551751800420150175110791556-M102015558716×4.3514.92
CKZ-B6018031004201501801401241588-M1025206012818×4.4617.25
CKZ-B6518031004201501801401221588-M1025206512418×4.4616.68
CKZ-B801601830420150-1601301001456-M825208011222×5.4611.42



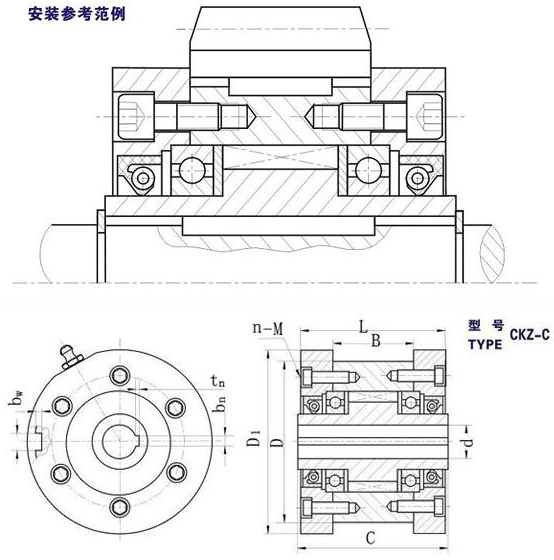

CKZ-C

特性:

   CKZ-C系列为楔块式单向离合器,内含两套滚珠轴承支撑。依照不同需要,出厂时内含润滑油或润滑脂。 内环与轴,外环与工件,用键联结,用两端盖夹紧传动工件。

   常用在纺织、化工、食品、包装、印刷等其它机械设备上.用作超越或定位送料离合器



型号额定扭矩超越极限转速外形尺寸〔mm〕重量
〔N·m〕〔r/min〕外环尺寸内环尺寸其他尺寸(kg)

内环外环D(h7)Bn-Mbw×twDCbn×tnD1L

(H7)
CKZ-C12629284051062266-M54×2.512504×1.870480.95
CKZ-C156811584051068266-M64×2.515504×1.876481.13
CKZ-C207515870042575276-M55×3.020514×1.883491.4
CKZ-C25100448630340100336-M86×3.525576×2.8104553.07
CKZ-C30120530560340120356-M812×5306312×3.3130614.68
CKZ-C35130920490255130376-M812×5356512×3.3140635.75
CKZ-C401401516420212.5140436-M812×5407412×3.3150727.67
CKZ-C451501500420212.5150486-M814×5.5457814×3.8160769.74
CKZ-C501702350350170170516-M816×6.0508416×4.31808213.34
CKZ-C601903100280170190556-M818×7.0609418×4.42009217.71
CKZ-C802003960210127.5200606-M1018×7.0809818×4.42109619.98
CKZ-C11025070001801102501048-M832×1111014632×7.426214450.12
CKZ-C11032010000130803201158-M2028×1011018028×6.433017581.98


CKZ-D

CKZ-F

特性:

   CKZ-F系列为带轴承非接触式单向离合器。仅有内环被设计有单项功能。出厂时已含有润滑剂。

   内环与轴用键联结,外环(h7)与机壁(H7)配合,用螺栓联结。

   常与减速机配套用在运输、冶金、提升机、矿山、电力等设备上。可用作防止逆转或高速超越、低速接合的双速驱动切换装置。


v

型号额定扭矩超越极限转速外形尺寸〔mm〕重量
〔N·m〕〔r/min〕外环尺寸内环尺寸(kg)

nma×nminD(H8)FB(js9)n-MHd(E7)bn×tn
CKZ-F2516540015004801651451258-M820258×3.320.51
CKZ-F3017050015004701701501308-M820308×3.322.46
CKZ-F3517560015004501751551308-  M10203510×3.323.58
CKZ-F4018580015004301851621308-  M10254012×3.324.16
CKZ-F50190100015004201901681358-  M10255014×3.826.95
CKZ-F55195125015004001951721458-  M10255516×4.331.31
CKZ-F552051600150040020518514510-  M10255516×4.334.81
CKZ-F602081600150040020818515010-  M10256018×4.436.71
CKZ-F652202000150040022019515010-  M10256518×4.440.88
CKZ-F702302500150039023020515012-M12257020×4.944.42
CKZ-F802454000150038024521816012-M12258022×5.452.93
CKZ-F902606300150037026023016012-M14259022×5.458.74
CKZ-F1002758000150037027524517012-M142510028×6.468.83
CKZ-F11029510000150037029526018512-M163011028×6.485.46
CKZ-F13033012500150035033029520012-M163013032×6.4113.44
CKZ-F14036016000150035036032021512-M183014036×8.4145.81
